Depanners & Depanning Equipment for Muffins, Bread & Loaf Cakes
Robotic depanning for muffins, bread, buns, loaf cakes and other baked goods. Apex depanning systems gently remove product
from pans without damage — reducing manual labour, improving consistency and protecting product quality.
Already Know What you Want? Contact us Today
Depanning Capabilities
Apex offers three depanning approaches, used individually or combined into one automated line:
Multi-Needle Head
Minimal to non-invasive needle transport
for muffins and cupcakes
.
Vacuum Gripper Head
Gentle suction-based pan and product
removal available in single or multi-nozzle.
180 Pan Flipper
Rotating conveyor that inverts pans and
tins to release product.
Multi-Needle Head
From a single head for lower production volumes up to large multi-needle
heads that depan 48 muffins at a time.
This non-invasive method depans multiple items simultaneously — for example, lifting four or more muffins from a baking tin and automatically loading them into clamshells. The system scales by adding cobots as production demands grow, letting you set the pace of your production team rather than the other way around.

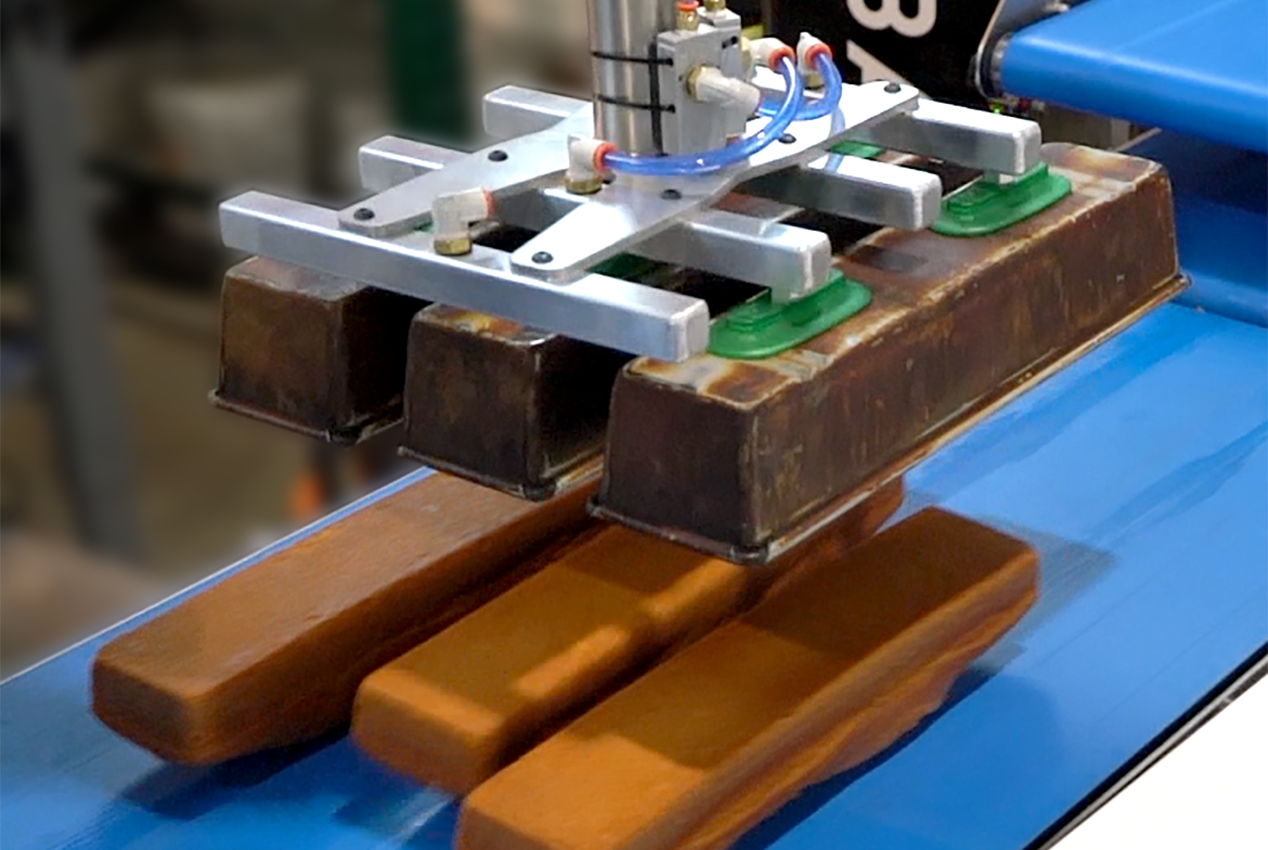

Robotic Vacuum Gripper Head
The vacuum gripper head uses gentle suction to lift pans away from product once pans have been flipped — ideal for loaf cakes, bread and other products where needle contact isn't suitable.
Also available as an end-of-arm attachment (end effector) for Apex's cobot series — Baker-Bot, Baker-Bot MAX or Flexi-Bot — this multi-grip attachment removes pans from product cleanly after flipping.

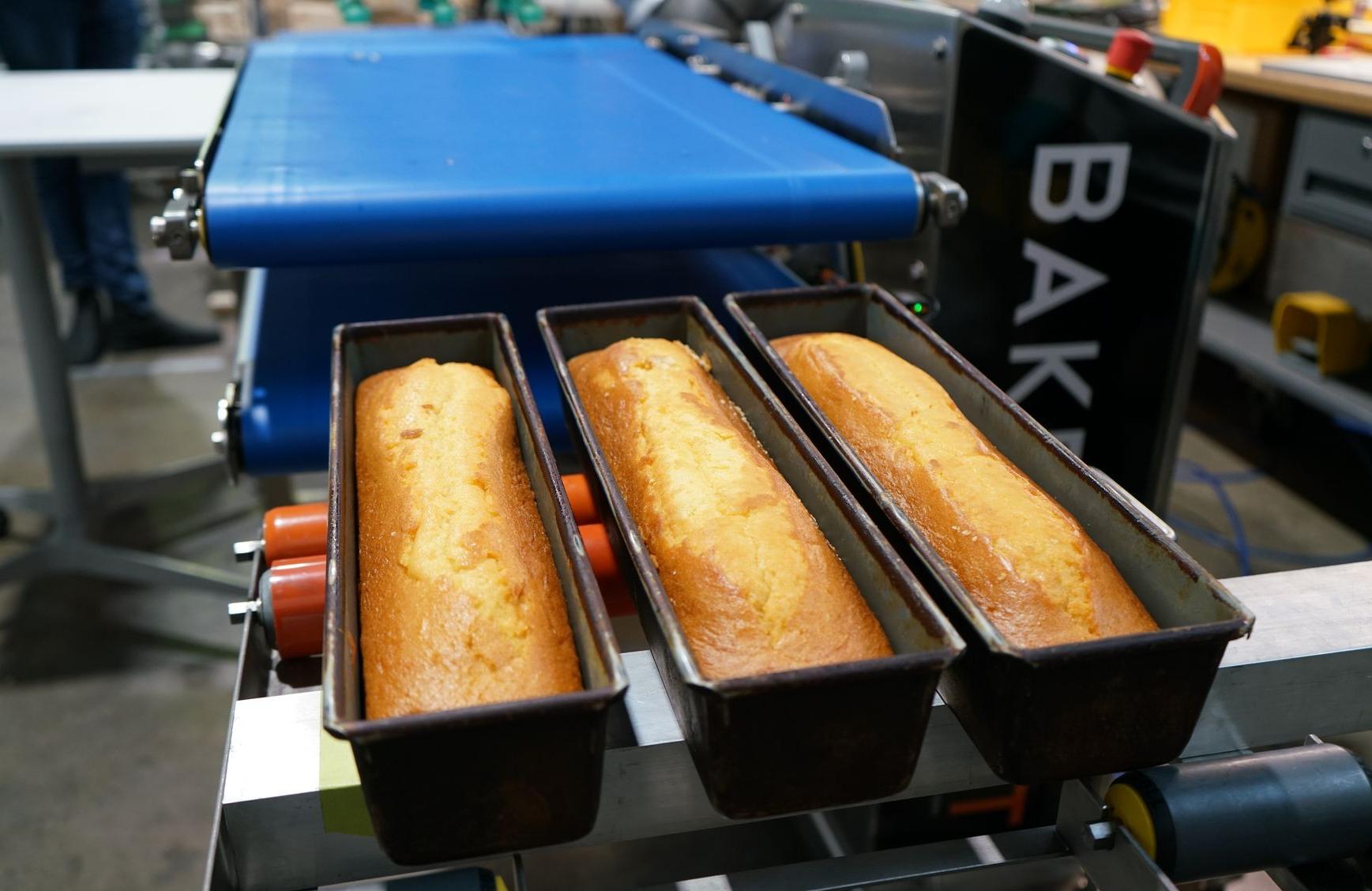

180° Pan Flipper
This conveyor inverts loaf pans, cake pans and muffin tins to release
product — a practical first step ahead of any depanning method.
The infeed can be fed automatically or manually — at the outfeed, once pans
or tins have been flipped, product can be removed manually or by an integrated Baker-Bot. Adding a second 180° flipper at the outfeed turns product right side up automatically, so it exits the line oriented correctly for cooling or packaging.
Why Work with Apex Motion Control for Depanning your Products?
With over 25 years of experience helping wholesale industrial bakeries streamline production, Apex helps manufacturers increase throughput,
consistency and accuracy while building a plan for future growth.
Equipment benefits:
- Versatile, modular solutions
- Reduced repetitive strain for workers
- Increased productivity and consistency
- Standard and custom configurations
- Remote and onsite support & service
- Easy integration with other OEM equipment
Frequently Asked Questions
What is robotic depanning?
Robotic depanning is the automated removal of baked product from pans or tins after baking, using needle grippers,
vacuum grippers or pan-flipping conveyors instead of manual handling.
How many muffins can Apex's depanner handle at once?
Apex's multi-needle heads range from a single head for lower volumes up to large heads
that depan 48 muffins at a time.
Does robotic depanning damage delicate baked goods?
No. Apex uses non-invasive needle transport and gentle vacuum grip methods designed
to remove product from pans without damaging it.
What is a 180° pan flipper used for?
A 180° pan flipper is a conveyor that inverts loaf pans, cake pans or muffin tins to release product. Adding a second
flipper at the outfeed returns product right side up automatically.
Can depanning equipment integrate with existing bakery lines?
Yes. Apex depanning heads are available as end-of-arm attachments for Baker-Bot,
Baker-Bot MAX and Flexi-Bot cobots, and integrate with existing OEM equipment.
What products can Apex depanning systems handle? Muffins, cupcakes, bread loaves, loaf cakes and similar pan-baked goods.
Reach out and let us know what your Depanning Needs Are.
